Trailer Reflective Tape Placement: A Practical Compliance and Installation Guide

Trailer reflective tape placement generally covers both sides, the lower rear body, the rear underride guard, and applicable upper rear corners. For U.S. regulated trailers, confirm width, GVWR, manufacturing date, body design, mounting height, lamps, obstructions, and material grade before cutting.

This guide uses the U.S. FMVSS 108 and FMCSA framework; other markets may differ. Review the high visibility reflective tape category when comparing film structures and formats.

Which Trailer Details Must Be Confirmed Before Layout?

Under 49 CFR 393.11, specified trailers at least 2,032 mm (80 in) wide, above 4,536 kg (10,000 lb) GVWR, and manufactured on or after December 1, 1993 are covered, subject to exceptions. Older trailers may fall under 49 CFR 393.13 retrofit provisions.

Record body type, width, GVWR, date, rear guard, lamps, hidden areas, market, and applicable rule before using a standard drawing.

How Should the Body Be Divided Into Visibility Zones?

Use four zones: sides for length, lower rear for body width, the rear guard for the underride member, and upper rear sections for outer corners. This exposes missing or obscured areas during production and maintenance.

FMVSS 108 allows the material to avoid outside ribs, stake-post pickets, protruding beams, door hinges, lamp bodies, and similar discontinuities. Restart the line on a stable surface so the outline remains understandable. HazardBarrier supplies red and white reflective trailer tape as standard rolls, slit rolls, and pre-cut strips; DOT-C2 or another approval must be confirmed by the exact grade and documents.

Where does reflective tape go on a trailer?

For an applicable U.S. commercial trailer, conspicuity material is generally placed on both sides, across the lower rear body, across the rear underride guard when present, and at required upper rear contours. Side and lower rear sections normally use alternating red-white material; upper corner sections are white. Keep the line horizontal as practicable, visible, and clear of lamps or moving hardware. Body design matters: FMVSS 108 excludes the upper rear contour element on a container chassis and on a platform trailer without a bulkhead.

How Much Tape Is Needed on Each Side?

Applicable U.S. side markings may be continuous or segmented, but at least half the trailer length must be covered, with gaps distributed as evenly as practicable. Measure the usable line at the selected height.

Minimum marked length = usable side length × required coverage. A 48 ft usable side at 50% needs at least 24 ft of material. Mark sections and gaps before cutting, match both sides, and keep the centerline generally 375-1,525 mm (15-60 in) above the road at curb weight, or as close as practicable.

Does trailer reflective tape need to be continuous?

Not always. Applicable U.S. side markings may be continuous or segmented if at least half the trailer length is covered and gaps are distributed as evenly as practicable. The line should extend near the front and rear where possible and remain visible around equipment or cargo. Sections may avoid ribs or hardware, but concentrated short pieces can destroy the recognizable outline. Plan the entire side before cutting or approving pre-cut strips.

How Should the Layout Pass Lights, Rivets, and Hinges?

FMVSS 108 permits breaks around hinges, lamp bodies, ribs, body joints, and similar discontinuities. Keep white sheeting at least 75 mm from required red or amber lamp lenses, and red sheeting at least 75 mm from required amber lamp lenses. Measure from the luminous lens area.

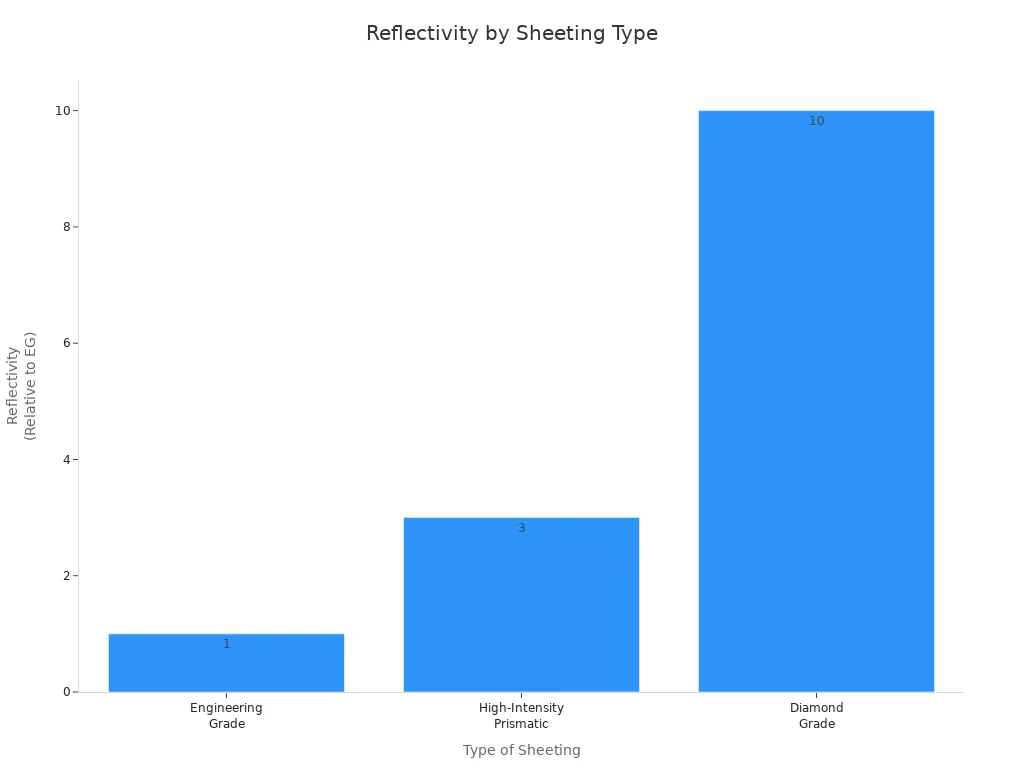

Where needed to clear rivet heads, DOT-C2 sheeting may be divided into two 25 mm strips of the same length and color, separated by no more than 25 mm. Do not bridge moving seams or leave adhesive suspended over prominent hardware. Maintain full surface contact and review the line from several meters away. See microprismatic reflective tape for more on prism geometry and viewing angle.

Can reflective tape be applied over rivets and trailer seams?

Low-profile fixed rivets may be handled by an approved application method, but the film should not bridge prominent heads, moving seams, hinges, or unstable edges. FMVSS 108 permits two 25 mm DOT-C2 strips, separated by no more than 25 mm, when needed to clear rivet heads or similar obstructions. Break the material at moving joints, maintain full contact, follow product instructions, and test uncertain surfaces before bulk installation.

What Surface Conditions Are Needed for Bonding?

HazardBarrier’s reflective trailer tape technical data gives a recommended application range of 10-38 C. Both the film and the substrate should be within the product range; service temperature after bonding is not the installation window. Wash off road dirt, remove detergent film, complete a compatible final clean, and allow the panel to dry.

Do not apply over rust scale, loose paint, wax, oil, silicone residue, wet coating, heavy texture, or condensation. Painted steel, aluminum, and smooth fiberglass are common substrates, but repairs and coating chemistry can change adhesion. Test uncertain surfaces. The site TDS reports no visible edge lift after 24 hours on cleaned painted steel at 23 C with firm roller pressure; use this only as a workshop reference.

What is the best temperature for applying trailer reflective tape?

A common recommended application range is 10-38 C (50-100 F), but the product TDS controls. Measure both air and substrate temperature because a metal body can differ from the workshop. Cold surfaces may reduce adhesive wet-out, while excessive heat can make alignment difficult. The panel must be clean, dry, stable, and free of wax, oil, silicone residue, rust scale, loose paint, and detergent film. Test unfamiliar coatings or composites on the actual substrate.

How Should a Buyer Verify the Roll Before Installation?

Red-white appearance does not prove DOT-C2 conformity. FMVSS 108 defines DOT-C2 sheeting as at least 50 mm wide and requires certification marking on each exposed segment. Match the marking to the product code, carton label, TDS, and supplier declaration.

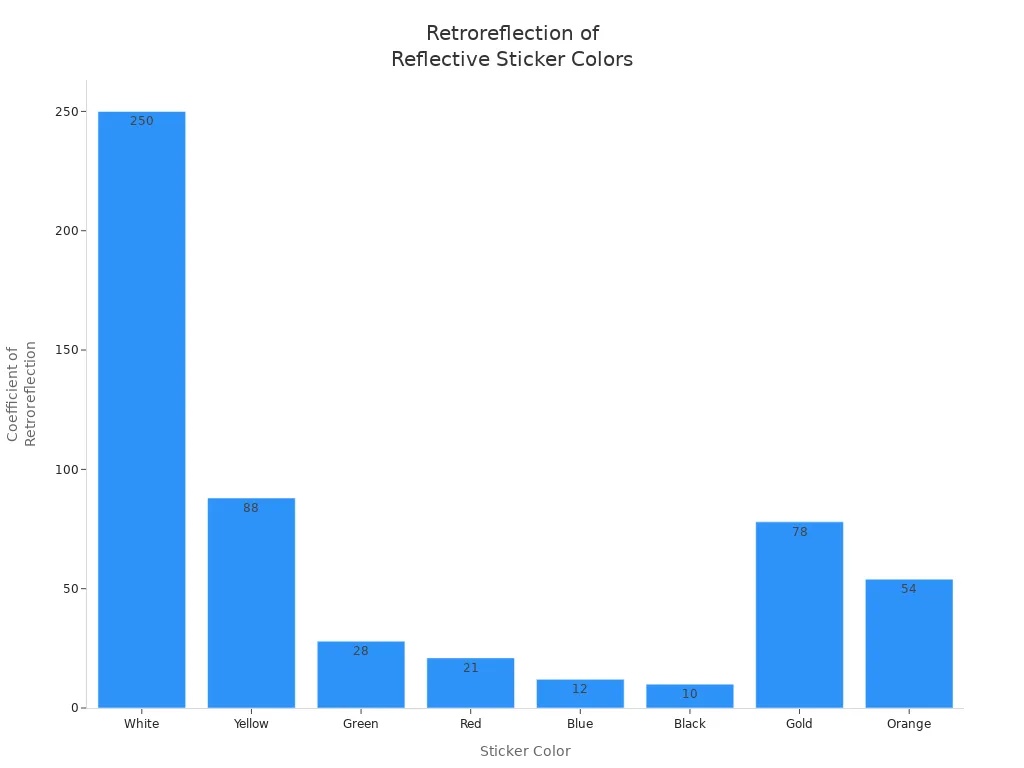

FMVSS 108 photometry uses a 50 mm effective-diameter source at 2,856 K and a 30.5 m (100 ft) distance. Results are stated in cd/lux/m2 at specified angles. At 0.2 degree observation and -4 or 30 degree entrance angle, Table XVI-c lists DOT-C2 minimums of 250 for white and 60 for red.

For pre-cut or nonstandard-width projects, confirm custom slitting and rewinding capabilities before approving packing. The related guide explains how to evaluate a conspicuity tape manufacturer through document control, lot consistency, sample approval, and technical support.

How can a buyer verify DOT-C2 reflective tape?

Check more than the red-white pattern. Under FMVSS 108, DOT-C2 sheeting is at least 50 mm wide and carries the required marking on each exposed red or white segment. Match the marking to the roll label, product code, TDS, and supplier documents. The photometric report should identify the product, colors, coefficient of retroreflection, observation and entrance angles, units, and method. Also verify repeat, temperature range, substrate limits, conversion tolerances, and batch traceability.

How Is the Finished Trailer Inspected in the Workshop?

Inspect in daylight for height, side coverage, spacing, color sequence, rear width, upper corners, lamp clearance, and edge contact. Record trimmed areas and their obstructions.

Then use a controlled low-angle headlamp view in a safe area. It does not replace laboratory photometry, but can reveal broken outlines, hidden sections, contamination, or excessive gaps from the side and rear.

Recheck after bond development, especially at ends, rivets, repaired paint, seams, and washing paths. Replace missing, faded, damaged, or lifting sections with the documented grade, not decorative film.

How should finished trailer reflective markings be inspected?

Inspect in daylight, under a controlled low-angle headlamp view, and after bond development. Daylight checks height, side coverage, spacing, rear width, upper corners, lamp clearance, alignment, and edge contact. The headlamp view can expose dark gaps, hidden or dirty material, and an unclear outline, but does not replace laboratory photometry. The post-bond check focuses on ends, rivets, seams, repaired coatings, and washing paths. Record photographs, material grade, batch, cleaner, temperature, and approved deviations.

What Does a Placement Failure Usually Mean?

Trace failures to measurement, surface condition, temperature, pressure, product grade, or obstruction mapping. Do not use unapproved primer, sealant, or solvent without compatibility testing. After body, lamp, or guard changes, reassess the full zone.

What Should the Project Record Contain?

Record vehicle ID, body type, width, GVWR, manufacturing date, standard, drawing revision, measured side length, coverage, product grade, roll and batch numbers, substrate, cleaner, installation temperature, installer, date, and photographs. Note approved exceptions.

The closeout record links the layout to the approved TDS and test evidence, supports repeat repairs, and helps diagnose edge lift or inconsistent brightness.

Questions Raised During Trailer Marking Projects

How high should trailer reflective tape be installed?

For applicable U.S. side and lower rear markings, the centerline is generally 375-1,525 mm (15-60 in) above the road at curb weight, or as close as practicable. Guard material follows the guard member.

Can a 25 mm roll replace standard 50 mm DOT-C2 tape?

Not generally. DOT-C2 sheeting is at least 50 mm wide. Two 25 mm strips may be used only to clear permitted obstructions, using the same length and color with no more than a 25 mm gap.

Is every red and white reflective roll DOT-C2 compliant?

No. Confirm the permanent DOT-C2 marking, width, repeat, product code, TDS, photometric evidence, and batch documents. Approval depends on the selected grade and documentation.

Can the same drawing be used for every trailer body?

No. Box trailers, tankers, platforms, container chassis, dump bodies, and utility trailers have different contours and hardware. Prepare a measured drawing for each body family and confirm applicable exceptions.
